Yamaha RX-S602

Slim and Compact Network AV Receiver

Be the first to review this product

$649.95

Audiogurus Knowledge Base

- View More

  • Choosing the Best AV Receiver
  • Yamaha Aventage Series Receivers Features Step-Chart

Description

Details

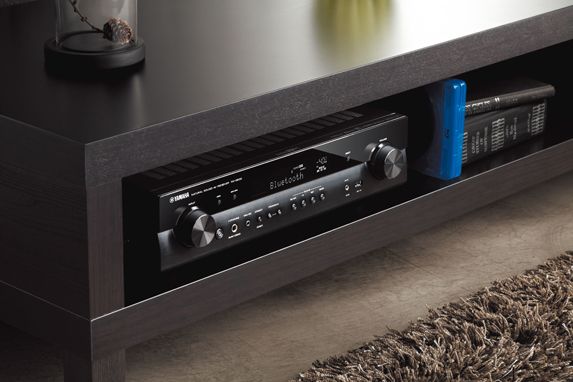

Creatively Compact


Slim and Compact Design

The RX-S602 is under 4.5" high and less than 13" deep. It tucks away in credenzas and fits nicely in narrow AV racks without jutting out from the front. This makes it easy to place or hide your system where you want it with a neat appearance.

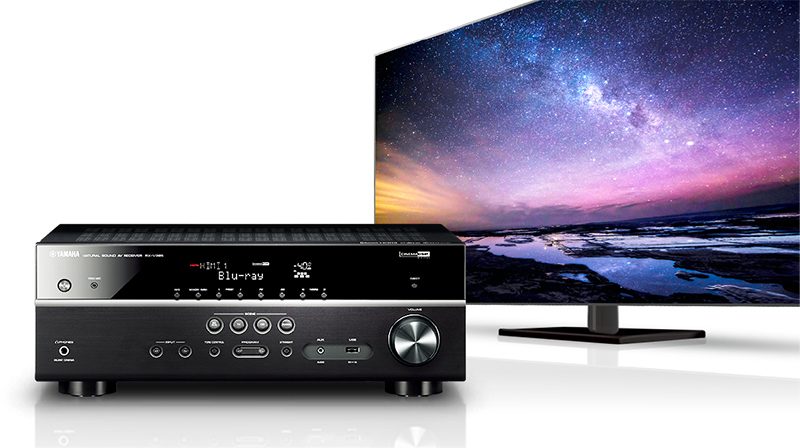

Full 4K


4K Ultra HD HDMI Support

Providing complete compatibility with the latest HDMI standards, this AV receiver delivers transmission of 4K video at 60 frames/second pass-through. It also supports HDR (high dynamic range) video including Dolby Vision and Hybrid Log-Gamma. This provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

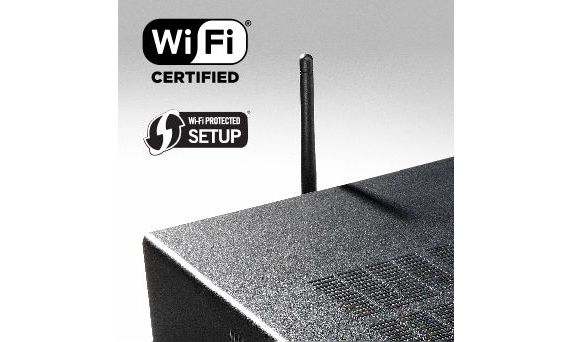

Stream Simply


Wi-Fi, Bluetooth, and AirPlay Compatible

Built-in Wi-Fi allows for a connection with your wireless router, greatly simplifying system connections for music streaming or enjoying networked audio (PC/NAS). Bluetooth connectivity is also included to stream into your receiver.

Experiences Expanded

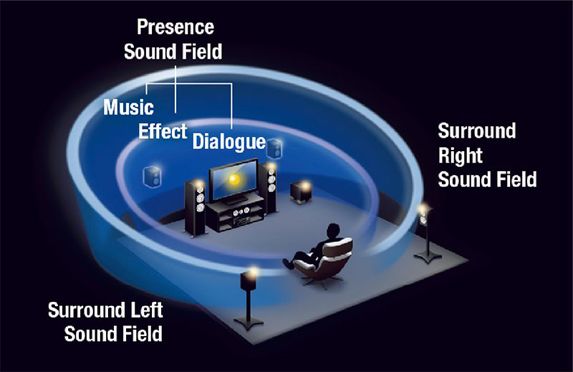

CINEMA DSP 3D

This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the acoustic spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies and music with this sound technology.

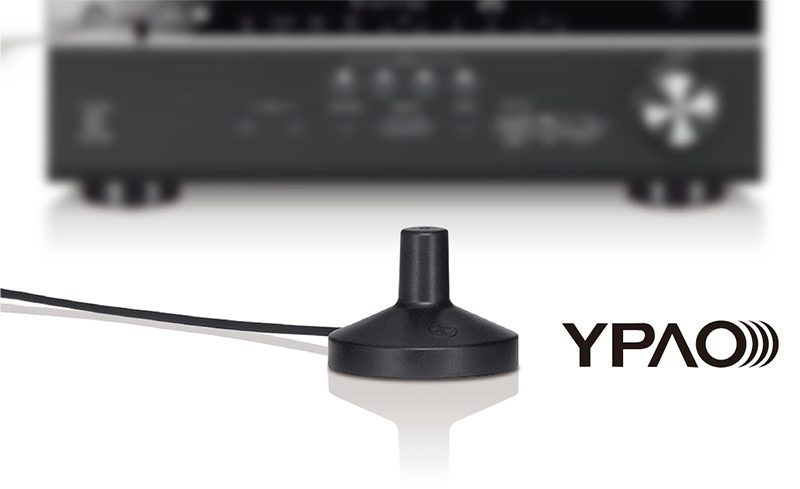

Every Room is Different


Easy Sound Optimization with YPAO™

YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. By placing the supplied microphone at your listening position and switching YPAO on, the system is automatically tuned for optimum performance in your home.

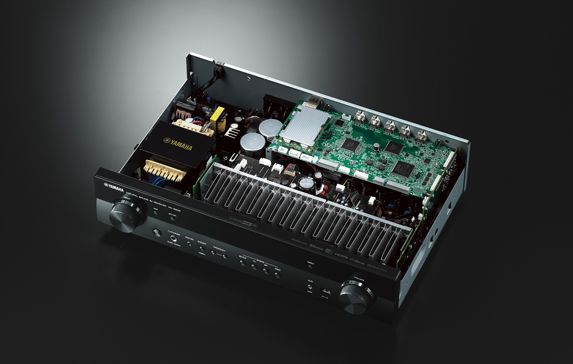

Optimum Performance


High-quality Parts and Design

Yamaha AV receivers feature fully discrete power amplifiers to minimize distortion and adopt independent pure power supplies for the analog and digital circuitry. They house ultra-high performance 384 kHz / 32-bit DACs, also with independent power supplies. These support in reproducing audio for high resolution sound sources without noise. Moreover, a new high sound quality IC is employed for volume control and large heat sinks suppress vibration. Down to every detail, these AV receivers are designed with full emphasis on the highest possible sound quality.

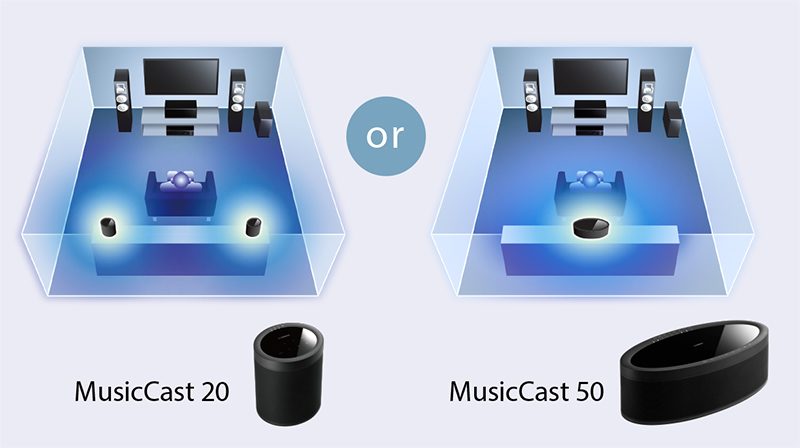

Wire Less


Wireless Surround Speakers

Combine this AV receiver with the upcoming MusicCast 50 or MusicCast 20 wireless speakers and enjoy the convenience of creating a home theater with wireless surround speakers in 5.1-ch. Get stunningly realistic sound with a clean, clutter-free setup and turn your current living room into an entertainment environment where you can fully enjoy movies and music.

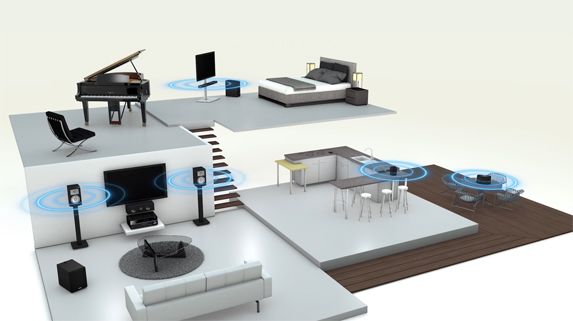

Multi-Room Audio


MusicCast

Start with this AV receiver in your home theater and expand to other rooms over time with MusicCast speakers, sound bars or Hi-Fi gear. Stream your music and TV sound everywhere using your existing Wi-Fi network. With MusicCast, the system grows with you, and there's no need to run wires through walls.

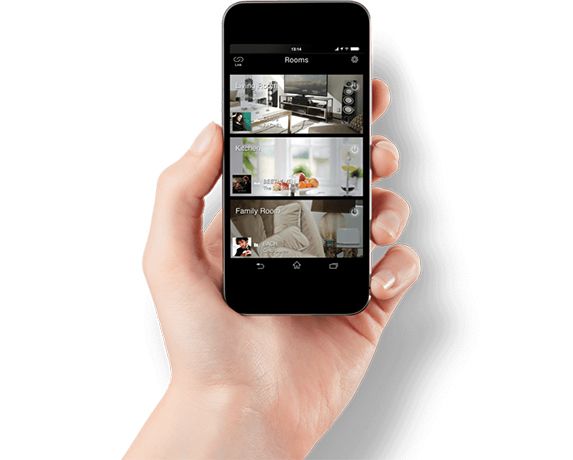

Easy Operation


MusicCast App

The free MusicCast app puts control of your AV receiver in the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.

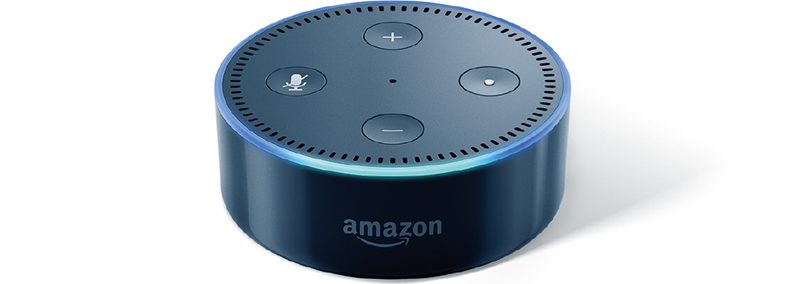

Voice Control


Amazon Alexa on MusicCast

"Alexa, turn up the volume." With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as an Echo or Echo Dot, to control either the AV receiver by itself or multiple MusicCast devices throughout your home.

* Availability of voice command control via Amazon Alexa varies by region.

Worlds of Music


Streaming Services

Explore a world of music with built-in music streaming services. Syncing your playlists and likes from your smart device to the receiver and discovering new music becomes even easier with your receiver.

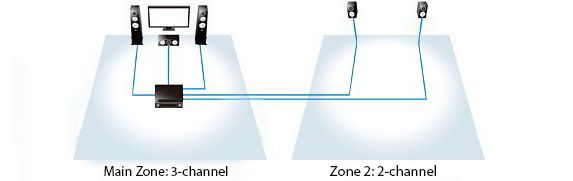

Second Room Sound

Zone 2

This feature, also known as Intelligent Amp Assign, allows users to enjoy stereo sound in a second room. When Zone 2 is turned on, the two surround back channels in a 7.1-channel system will be redirected to the two speakers in Zone 2, while giving the Main Zone 5.1 channels of power. Thanks to this feature, there's no need to switch the speaker cables on the rear of the AV receiver.

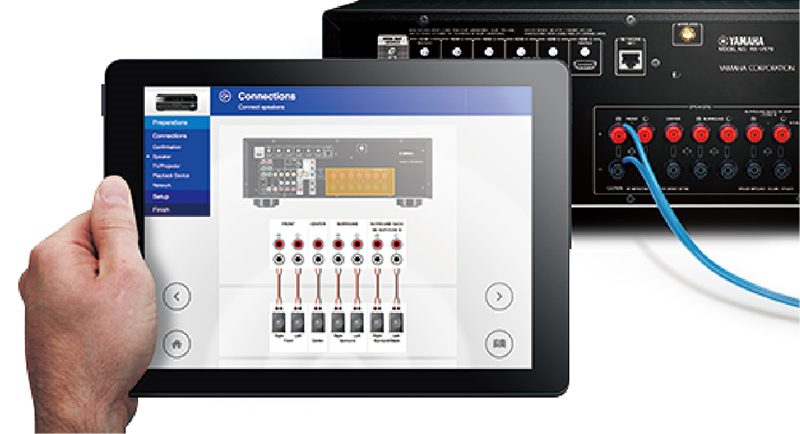

An Easy Install


AV Setup Guide

Use this special app and get expert assistance with cable connections between the AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

Specs

AV Receiver

Amplifier Section

Number of Channels 5.1
Power Output 55 W per channel at 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2 channels driven
80 W per channel at 8 Ohms, 1 kHz, 0.9% THD, 1 channel driven
125 W per channel at 6 Ohms, 1 kHz, 10% THD, 1 channel driven
Dynamic Power per Channel At 8 Ohms: 90 W
At 6 Ohms: 110 W
At 4 Ohms: 140 W
At 2 Ohms: 160 W
AM/FM Tuner Yes/Yes
Connectivity
Inputs 4 x HDMI
2 x digital coaxial
1 x optical TOSLINK
1 x USB (front)
3 x stereo RCA
3 x RCA composite video
1 x 1/8" / 3.5 mm aux (front)
Outputs 1 x HDMI
1 x RCA composite video
1 x 1/4" / 6.35 mm headphone (front)
1 x RCA subwoofer pre-out
Additional Connections 1 x Ethernet LAN
2 x wireless antennas
1 x FM antenna in
1 x AM antenna in
Speaker Connectors 5 x binding post pairs
HDCP Version HDCP 2.2
Wi-Fi Bands Dual-band (2.4 / 5 GHz)
Bluetooth Yes
Bluetooth Profiles SBC, AAC
USB Formats MP3, WMA, MPEG-4 AAC up to 48 kHz / 16-bit, ALAC up to 96 kHz / 24-bit, FLAC up to 192 kHz / 24-bit, WAV, AIFF up to 192 kHz / 32-bit, DSD up to 11.2 MHz
General
Power Requirements Not specified by manufacturer
Standby Power Consumption IR Only: ≤0.1 W
Dimensions (W x H x D) 17.13 x 4.38 x 12.88" / 43.5 x 11.11 x 32.7 cm with antenna down
17.13 x 7.5 x 12.88" / 43.5 x 19.05 x 32.7 cm with antenna up
Weight 17.2 lb



Specifications

HDMI Inputs 4
HDMI Outputs 1
MHL Support No
Component Video Inputs No
Component Video Outputs No
4K Support Yes
4K Upconversion Yes
HDMI Video Processing Yes
HDMI Standby Passthrough No
Video Processor No
Channels 5.1
Watts Per Channel 60
Zone 2 Yes
Zone 3 No
Zone 4 No
Powered 2nd Zone Yes
HDMI 2nd Zone No
Coaxial Digital Inputs 2
Optical Digital Inputs 1
Multi-channel Pre-amp Input No
Multi-channel Pre-amp Output No
Multi-channel Pre-Amp Output No
Bi-amp Mode Yes
Phono Input No
Audyssey No
Audio Delay Yes (0-500 ms)
FLAC Support No
Zone 2 DAC No
D/A Conversion Burr-Brown 384 kHz / 32-bit DAC x 3
DLNA Certified Yes
Pandora Yes
Spotify Yes
Sirius XM Yes
Rhapsody Yes
Wi-Fi Yes
Networking Yes
AirPlay Yes
Bluetooth Yes (AAC)
USB Front/Rear 1/0
Trigger Out No
12V Triggers -
Remote Loop No
Smartphone App Yes
Power Cable Attached
RS-232 Port -
THX Certified No
Width (inches) 17-1/8”
Height (inches) 4-3/8
Depth (inches) 12-7/8”
Weight (lbs) 17.2
