Network Stereo Receiver
The elegant design of the R-N803 is equally matched with powerful brainy internals – a full suite of modern technological and connectivity features make the receiver even more captivating and result in a receiver worthy to take home to your Wi-Fi® and Hi-Fi.

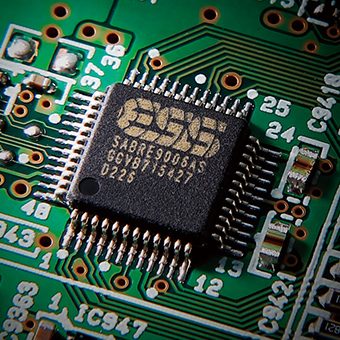

The R-N803 uses the renowned SABRE 9006AS 192 kHz/24-bit DAC (from ESS technology) to deliver superior signal-to-noise ratio performance. Combined with the Yamaha original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

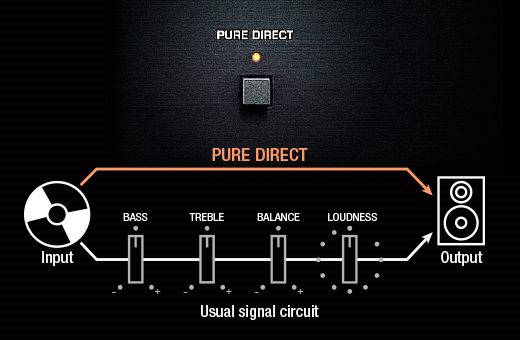

Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi® network.
- Stream it all. Listen to Pandora®, Spotify, Napster, SiriusXM Internet Radio, TIDAL, Deezer, thousands of free internet radio stations and the music stored on your smart devices and computers.
- Wireless connectivity. All MusicCast products are fully loaded with Wi-Fi, Bluetooth and AirPlay®.
- Expand to a whole home audio experience. When you’re ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.
- No wires, easy installation. By using MusicCast, you don't need to fuss with placing wires through walls into other rooms.
Optical TV Input
The R-N803 is equipped for digital audio input with both audio and coaxial terminals. With an optical input, TV sound reaches new sonic platforms - pure, pristine, and dynamic sound for all entertainment sources, from sports and other programs to movies and concerts.

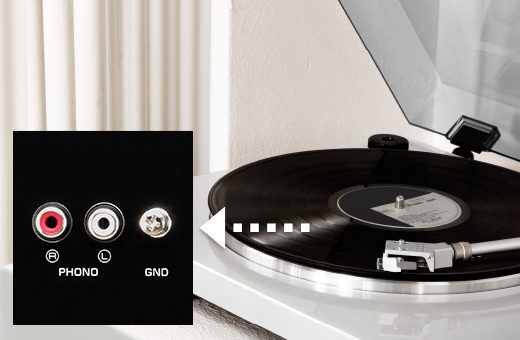

Love for Vinyl
Throw your vinyl collection love and drop a needle with the phono input terminal that connects the R-N803 to a record player.
Receiver / Integrated Amplifier
|Network section||DLNA||Version 1.5|
|File Format||MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD|
|Wi-Fi||Yes (with Wireless Direct)|
|Bluetooth||Yes (SBC / AAC)|
|Minimum RMS Output Power||100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.019% THD)|
|Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)||160 W + 160 W|
|Maximum Power(8 ohms, 1 kHz, 10% THD)||145 W + 145 W|
|High Dynamic Power/Channel (8/6/4/2 ohms)||140 / 170 / 220 / 290 W|
|Frequency Response||0 ± 0.5 dB / 0 ± 1.0 dB|
|Signal-to-Noise Ratio (CD)||100 dB (Pure Direct on, 200 mV)|
|Audio In / Out||10 / 2|
|Digital Input||Yes (Optical / Coaxial)|
|Control (Trigger) Out||Yes|
|FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)||3 µV (20.8 dBf)|
|FM Signal-to-Noise Ratio (Mono/Stereo)||69 dB / 67 dB|
|Standby Power Consumption||0.1 W (Network standby on / Wi-Fi connection; 1.8 W)|
|Dimensions (W x H x D)||17-1/8" x 6" x 15-7/16" (with antenna up: 17-1/8" x 8-1/2" x 15-7/16")|
|Component Video Inputs||No|
|Component Video Outputs||No|
|HDMI Video Processing||No|
|HDMI Standby Passthrough||No|
|Watts Per Channel||No|
|Powered 2nd Zone||No|
|HDMI 2nd Zone||No|
|Coaxial Digital Inputs||1|
|Optical Digital Inputs||1|
|Multi-channel Pre-amp Input||No|
|Multi-channel Pre-amp Output||No|
|Multi-channel Pre-Amp Output||No|
|Zone 2 DAC||No|
